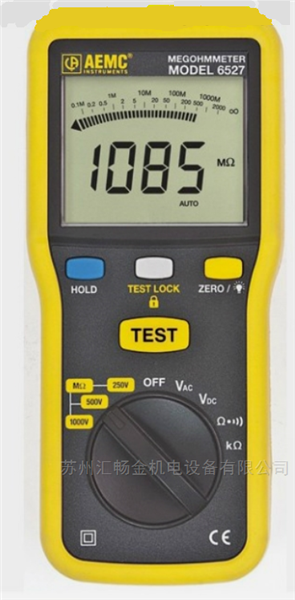

AEMC 6527兆欧表/绝缘电阻测试仪

测试参数

型号

6527

绝缘电阻测试

测试电压

250V

4 to 4000MΩ (4GΩ)

500V

4 to 4000MΩ (4GΩ)

1000V

4 to 4000MΩ (4GΩ)

量程

4MΩ/40MΩ

2% of Reading ± 10cts

400MΩ

2% of Reading ± 5cts

4000MΩ (4GΩ)

4% of Reading ± 5cts

电压报警指示器

有

过载保护

有

电压测试

600V/1000V

Yes – above 25V

精度

DC

0.8% of Reading ± 3cts

AC

1.2% of Reading ± 10cts

低电阻测量

量程

0.0 to 400.0kΩ

精度

1.2% of Reading ± 3cts

连续性测试

量程

0.00 to 400Ω

精度

1.2% of Reading ± 3cts

电流测试

>200mA (0.2Ω/2Ω)

测试导线补偿

Yes – dedicated push-button

Beeper

Yes – <35Ω ± 3Ω

供电

电源

6 x 1.5V AA 电池
